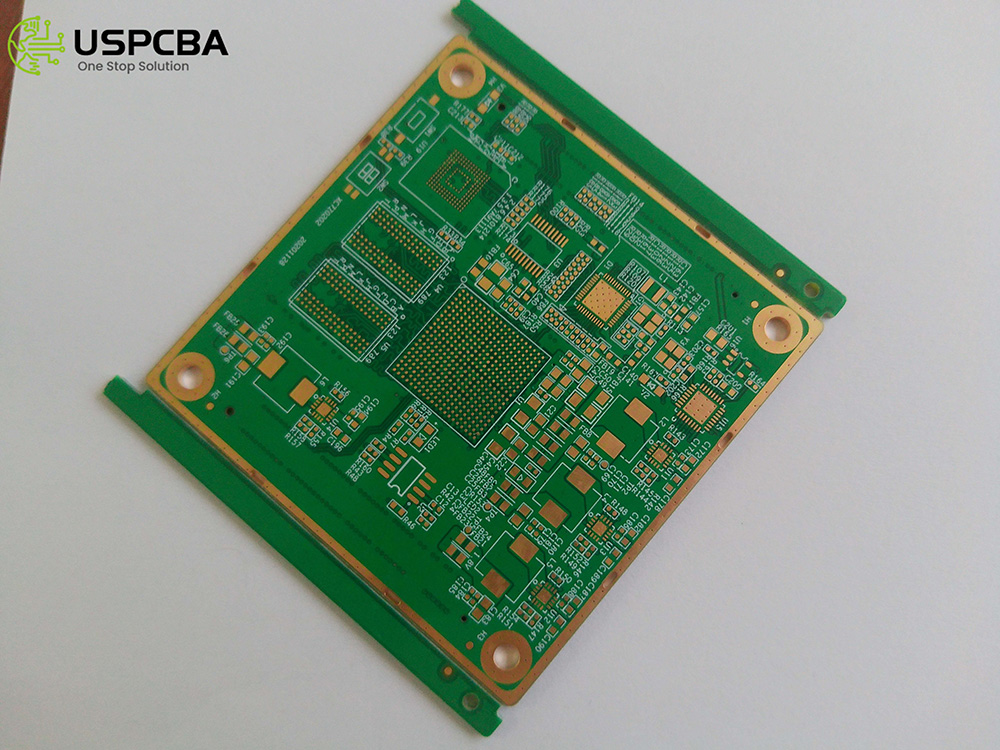

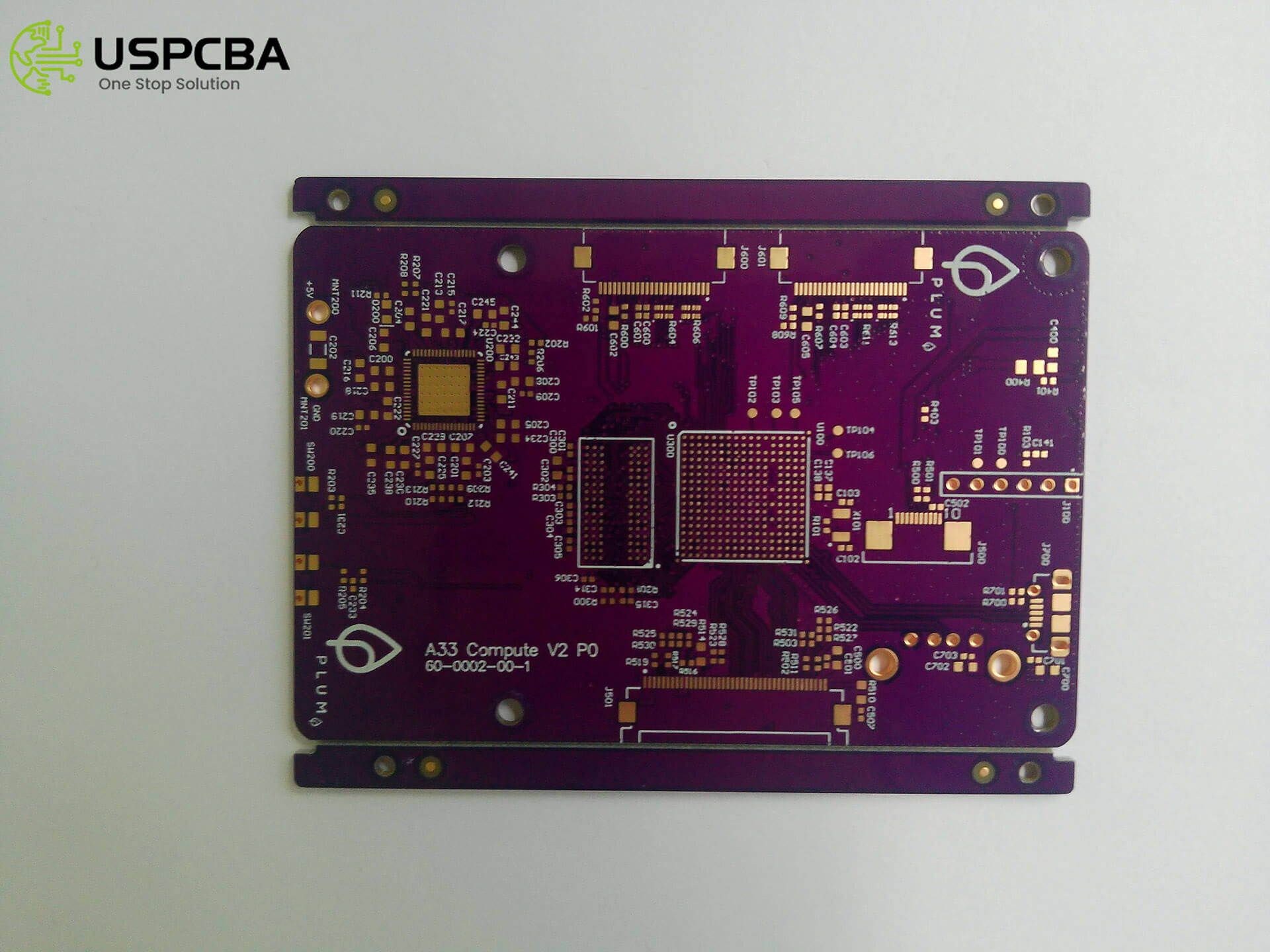

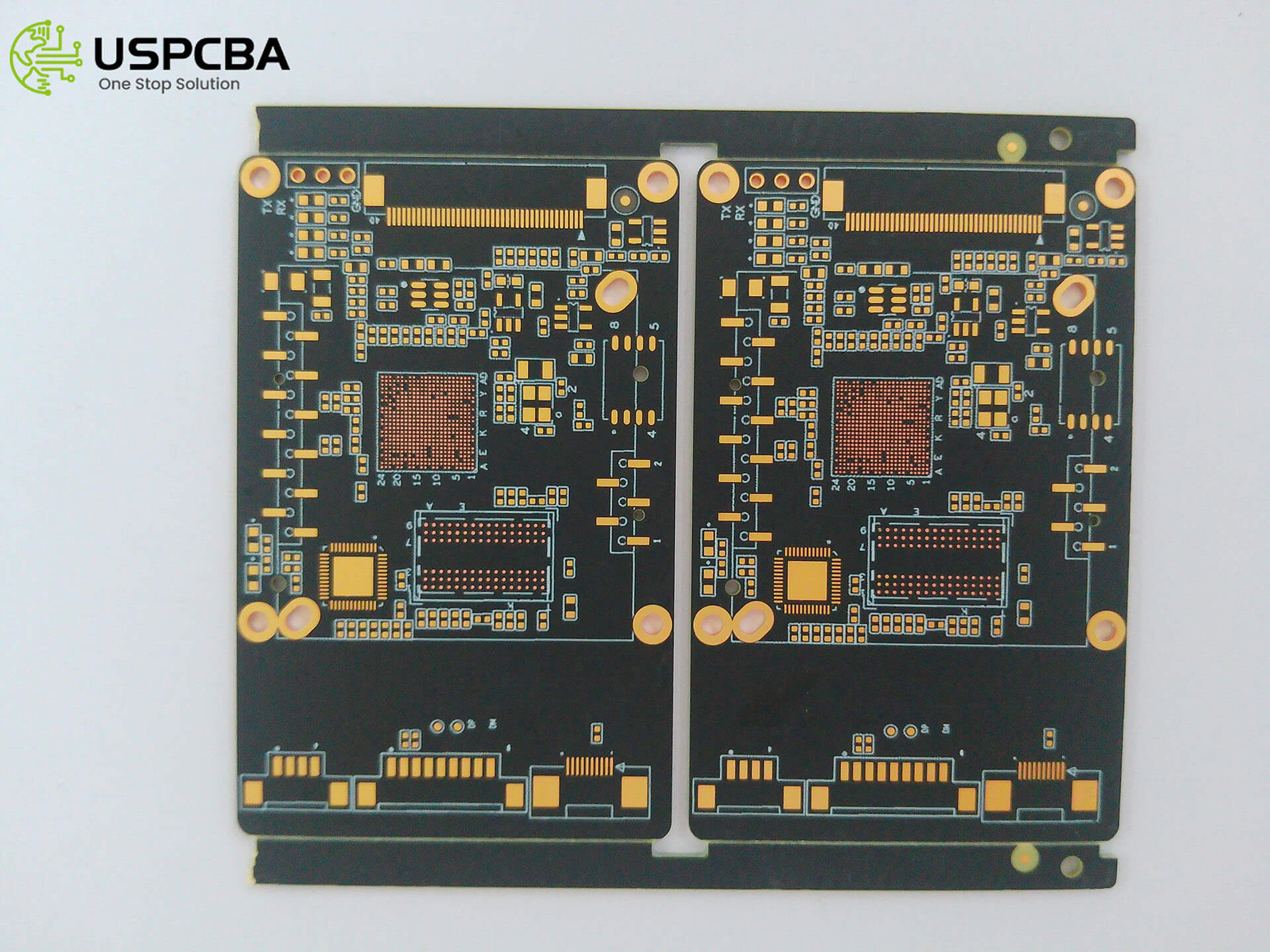

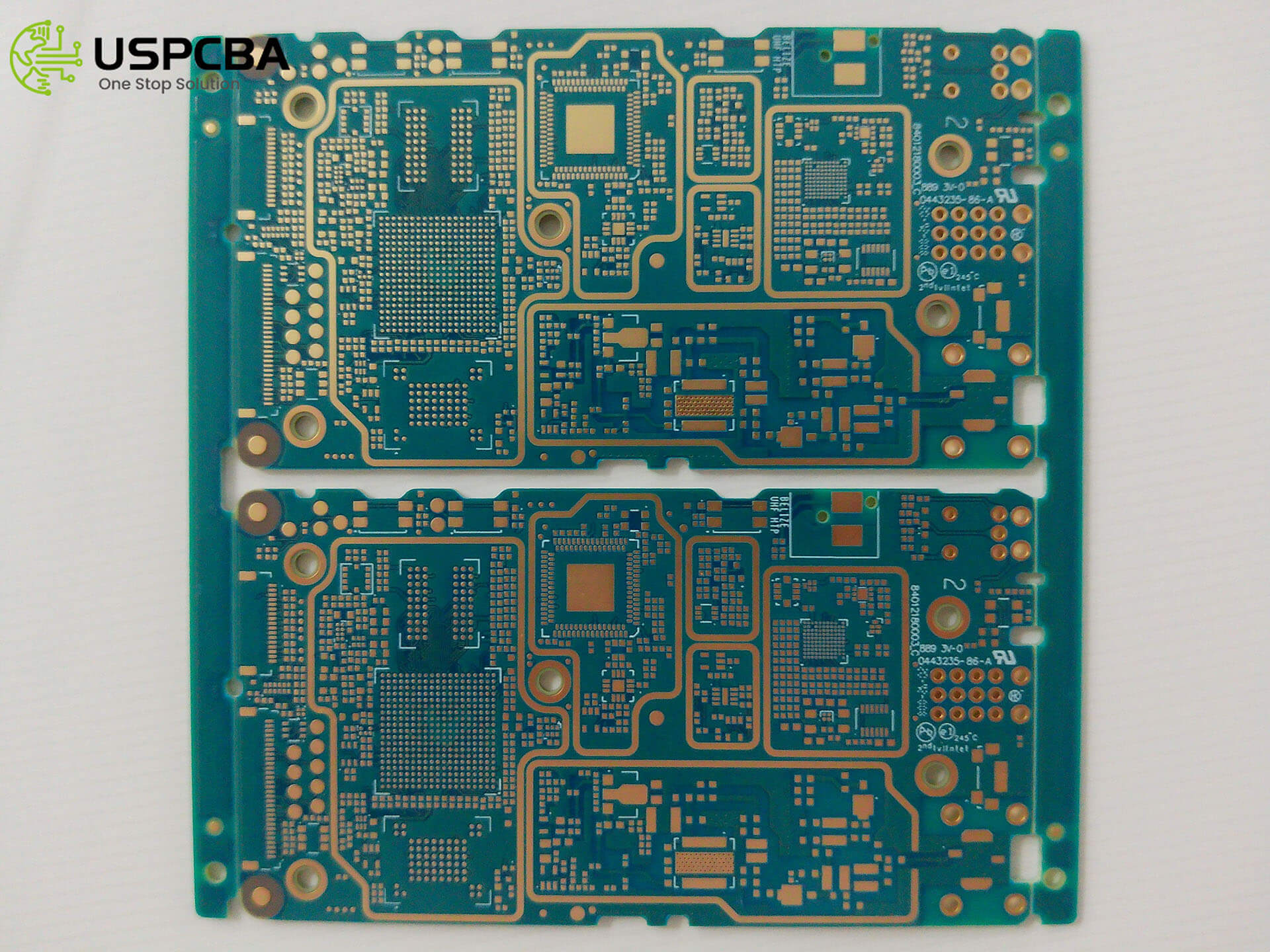

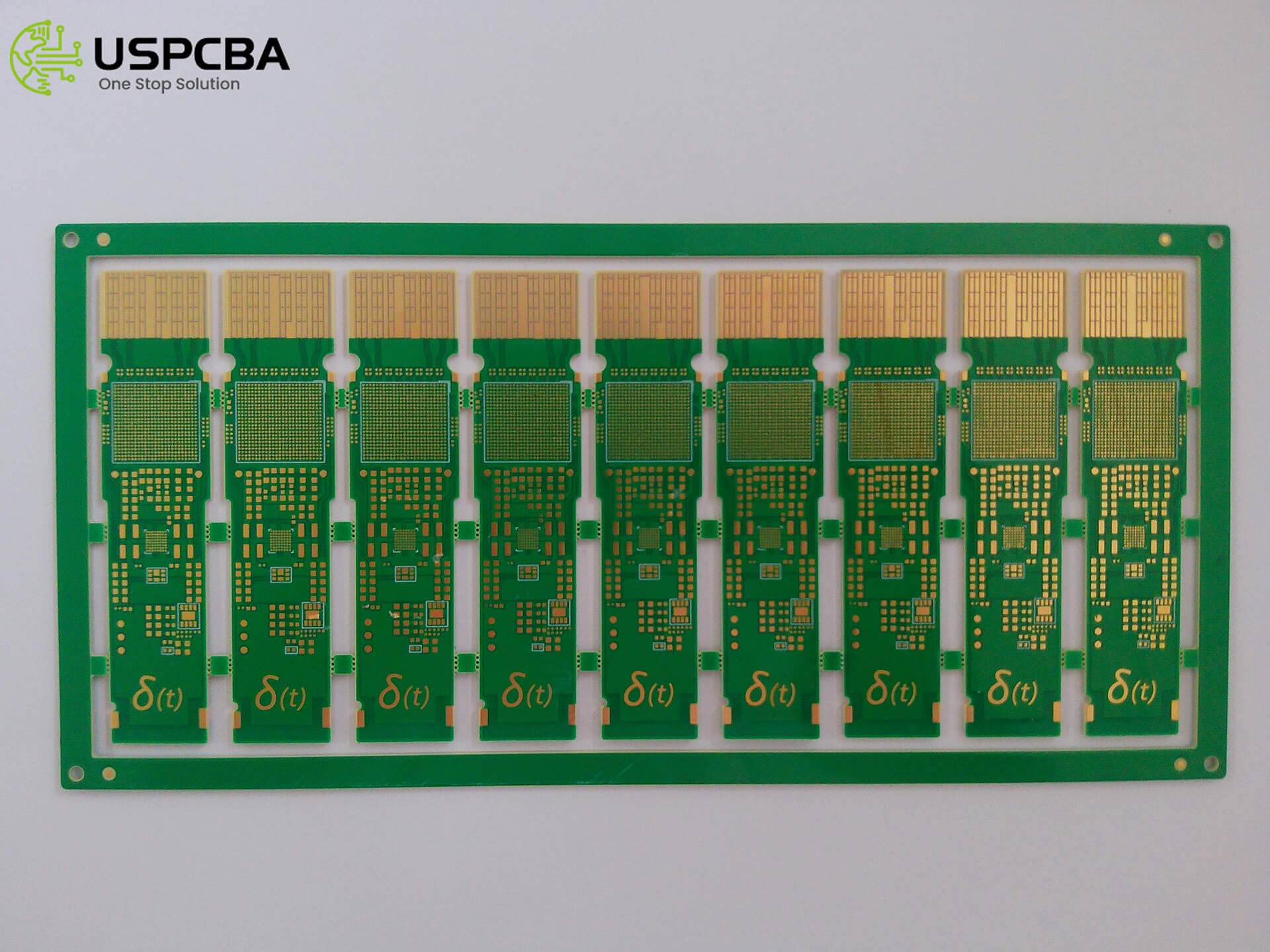

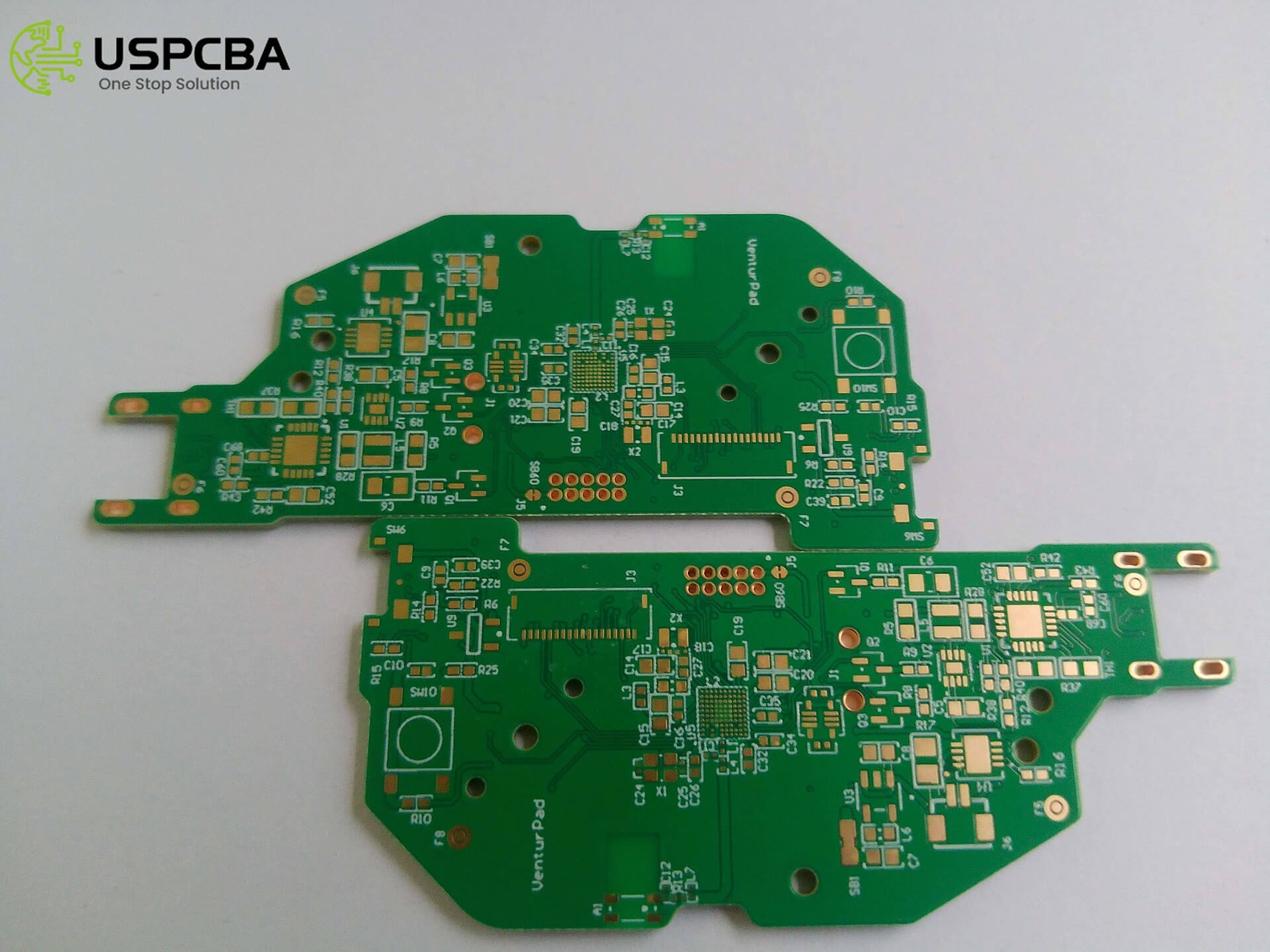

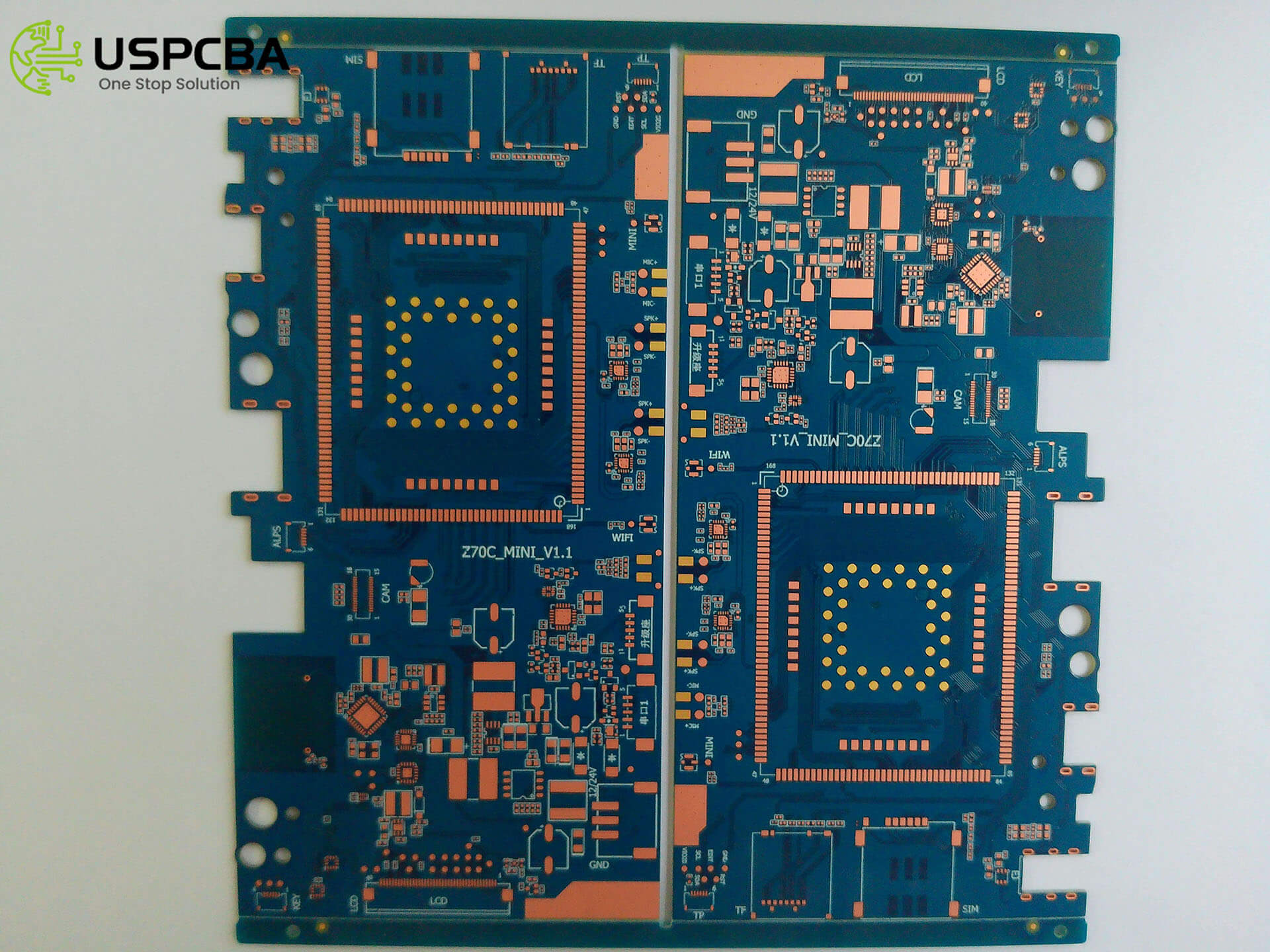

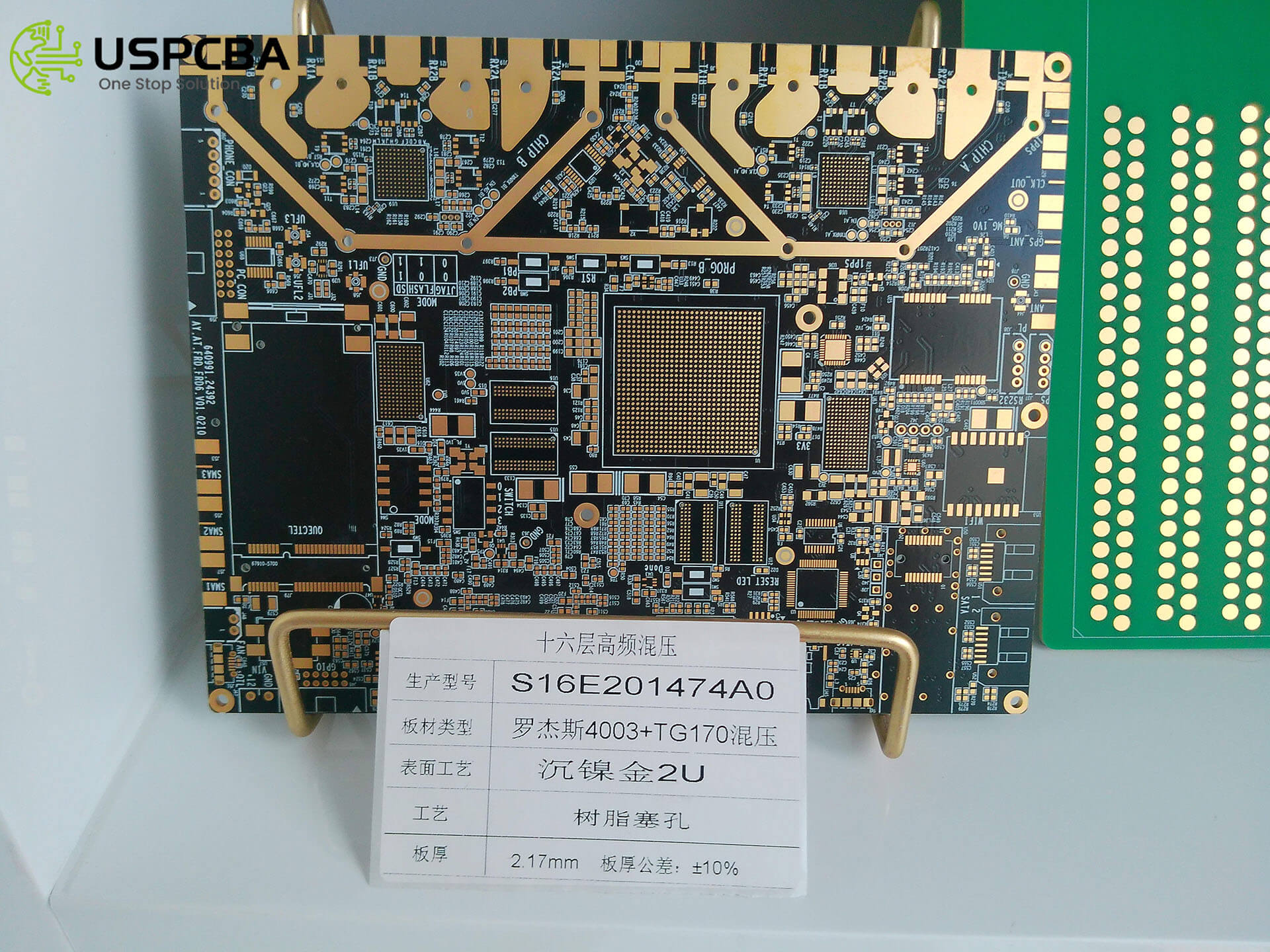

HDI PCB

HDI can make product design more miniaturized and meet higher electronic performance

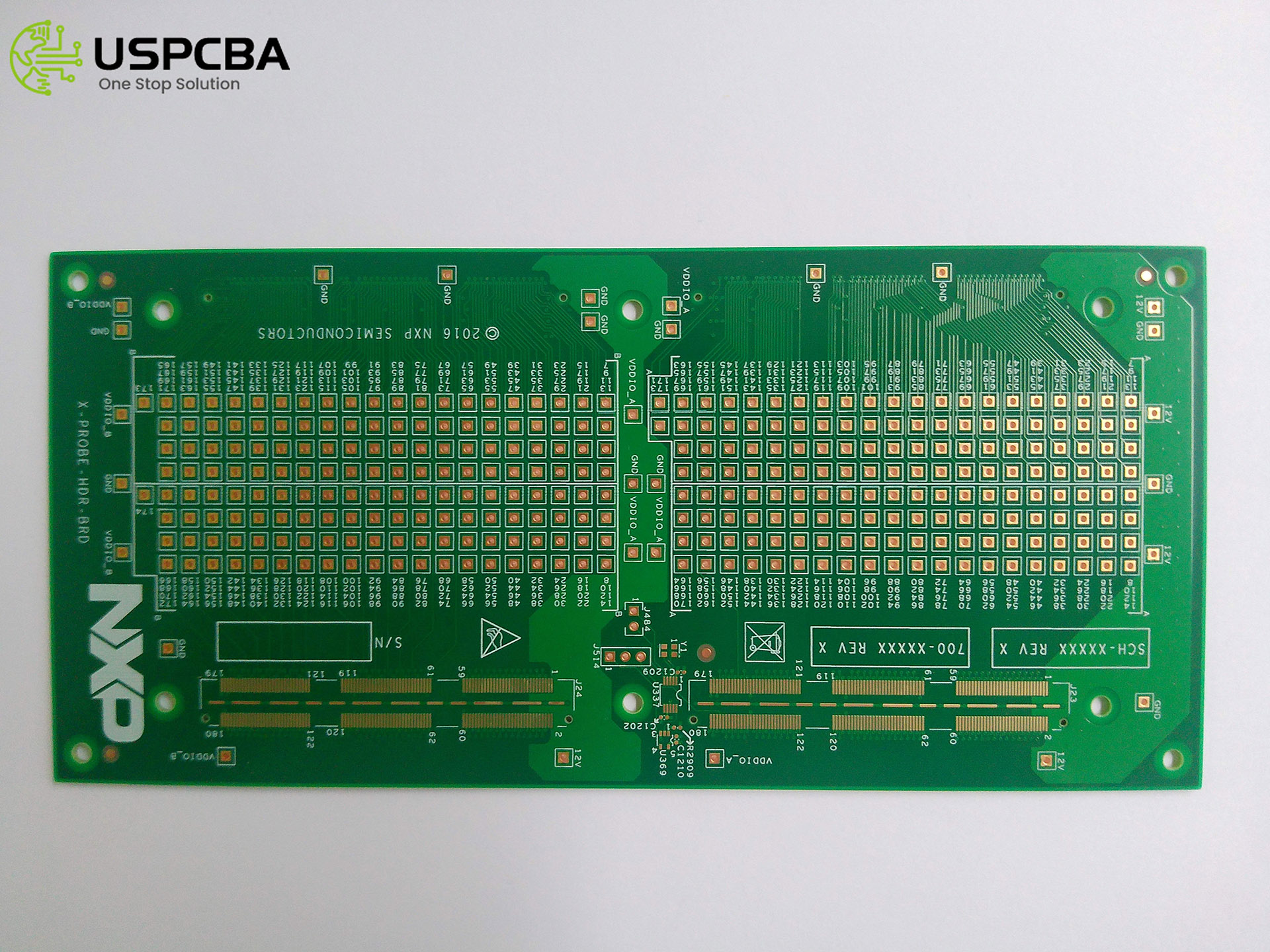

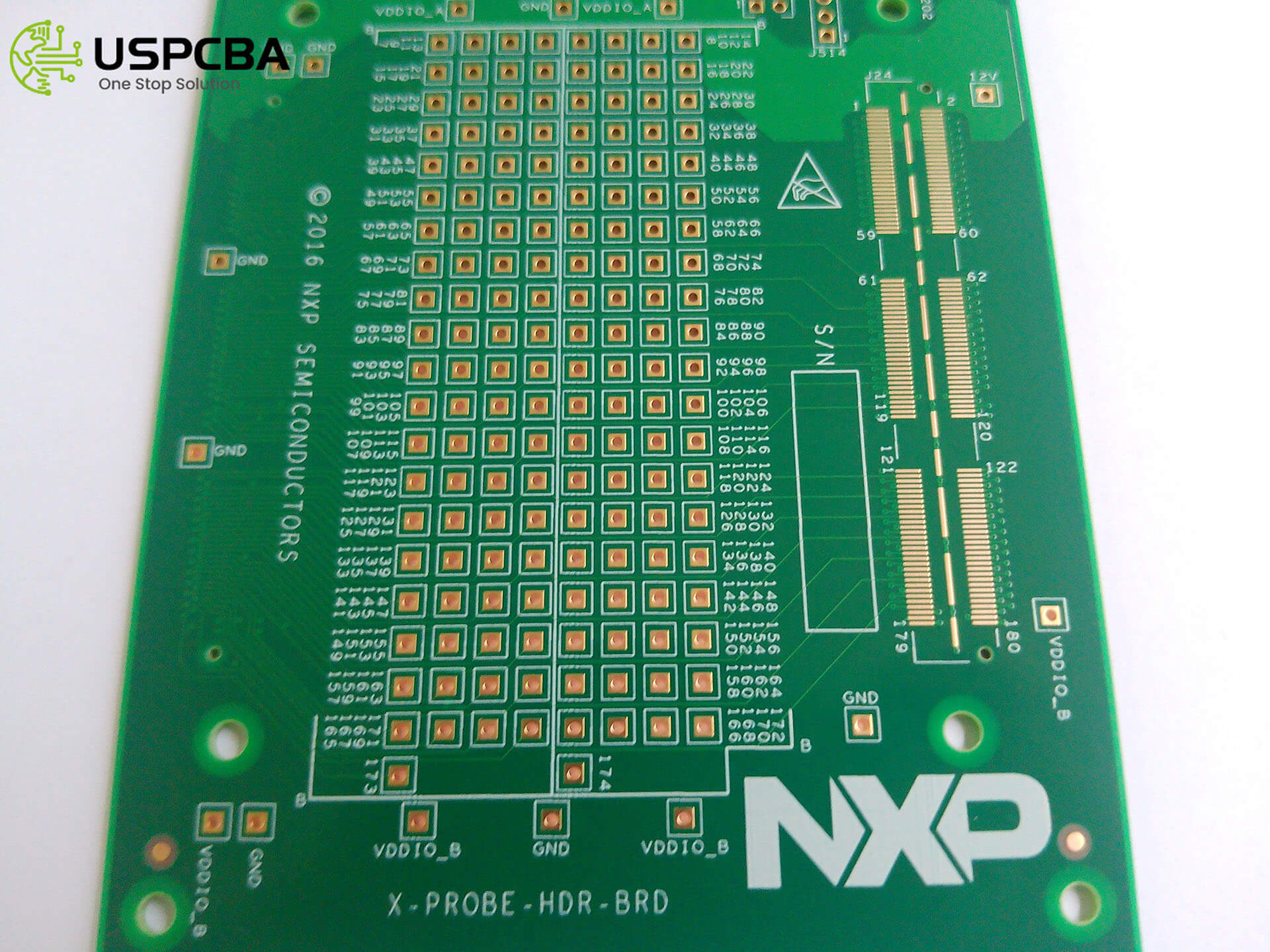

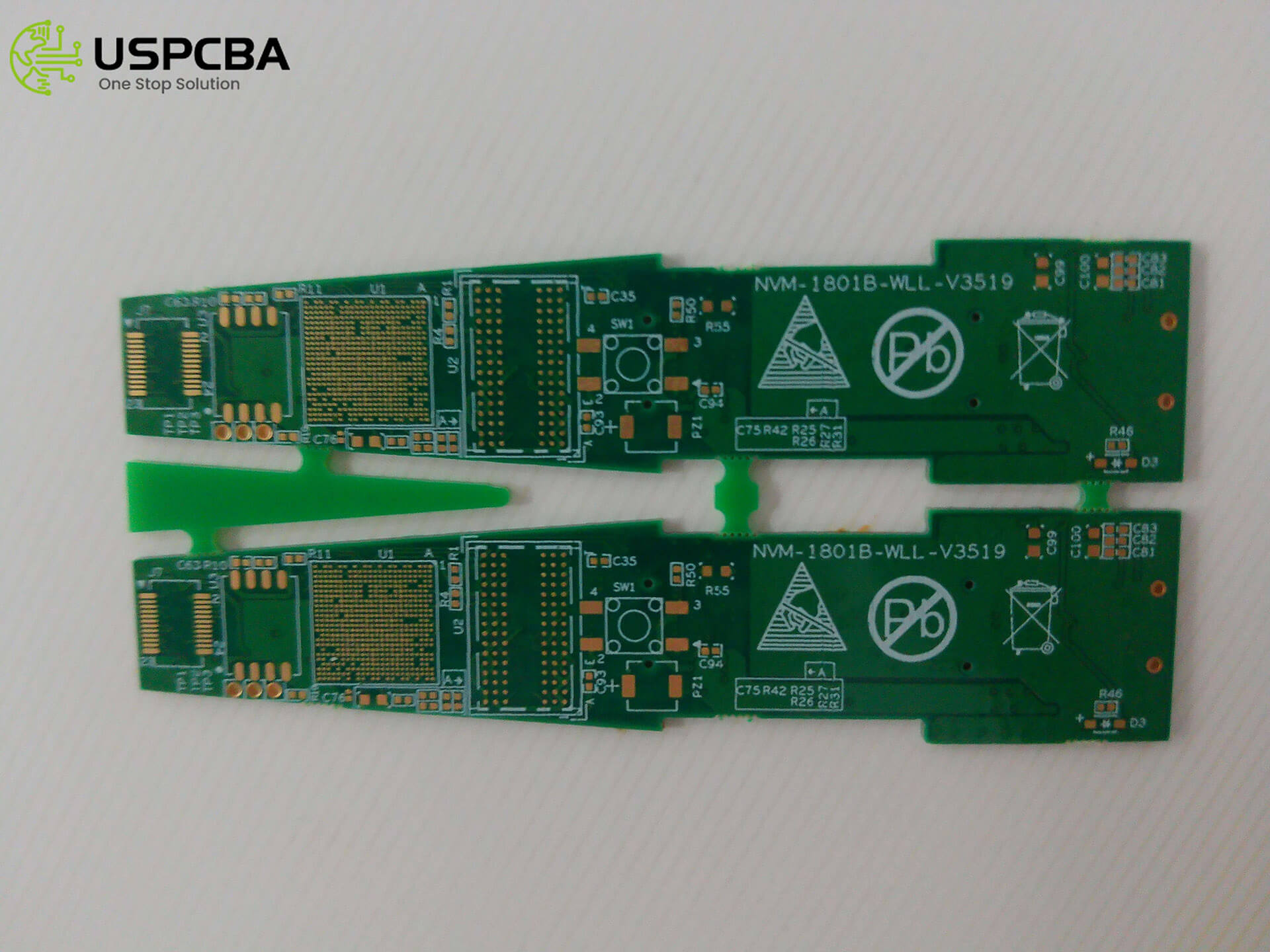

HDI PCB
Application: Consumer electronics field
Characteristic: Min. width/space: 4/4mil, Aspect ratio:12:1
Material: FR4, 94V-0, RoHS
PCB Layer: 6 Layers
Thickness: 1.6mm
Copper thickness: 1oz - 2oz
Surface finished: Immersion gold (2u")
Solder Mask: Green
IPC Standard: IPC 600 Class 2 & Class 3
Testing: AOI Inspection & 100% E-test

REQUEST A QUOTE

HDI PCBs – Technical specification

Feature Technical specification
Number of layers 2 ~ 52 layers
Materials FR4, ( 94V-0, Tg 135, Tg 150, Tg 170 )
Solder Mask Color Green, Blue, Black,White, Red, Yellow, Purple, Pink, Grey
Characters White, Yellow, Black, etc.
Board Thickness 0.2mm - 6.0mm
Copper weights (finished) 0.5oz - 6.0oz
Minimum Trace/Space 0.07mm / 0.07mm
Minimum dimensions 5mm x 5mm;
Maximum dimensions 610mm x 600mm
Minimum mechanical drill (PTH) 0.15mm
Minimum laser drill (blind/micro hole) 0.1mm
Surface finished

HASL - Hot air solder leveling
Lead - free HASL - RoHS
ENIG - RoHS
Immersion Silver - RoHS
Immersion Tin - RoHS
Golden finger - RoHS
OSP - RoHS

E-Testing 100% E-Test , Flying Probe Test & Fixture Test
IPC Standard IPC 600 Class 2 & Class 3

HDI PCB

High Density Interconnect PCB, is a circuit board with relatively high line distribution density using micro-blind and buried via technology.

With the development of high-density, high-precision electronic products, the requirements for circuit boards are also the same. The most effective way to increase PCB density is to reduce the number of vias and precisely set blind and buried vias to meet this requirement, resulting in HDI boards.

The electrical interconnection between the board layers of HDI is realized through conductive through holes, buried holes and blind holes. Its structure is different from ordinary multi-layer circuit boards. A large number of micro-buried blind holes are used in HDI boards. HDI uses laser direct drilling, while standard PCBs are usually mechanically drilled, so the number of layers and aspect ratios tend to be reduced.

HDI can not only enable more miniaturization of end product designs, but also meet higher standards of electronic performance and efficiency at the same time.

At present, the core pain point and difficulty of HDI manufacturing is the buried hole plug hole. If the HDI buried hole plugging is not done well, there will be major quality problems, including uneven board edges, uneven dielectric thickness, and potholes on the pads. USPCBA is very professional in this area, we have many years of experience to meet different needs, specially customize HDI PCB of different difficulty for you.
